Single Layers Round Neodymium Magnet Grate

Single Layers Round Neodymium Magnet Grate

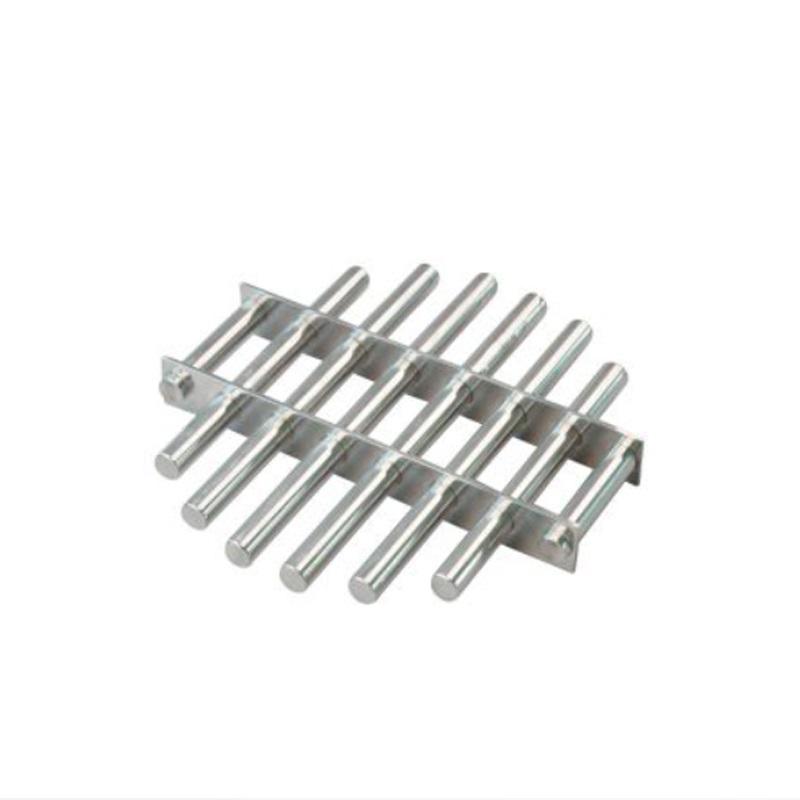

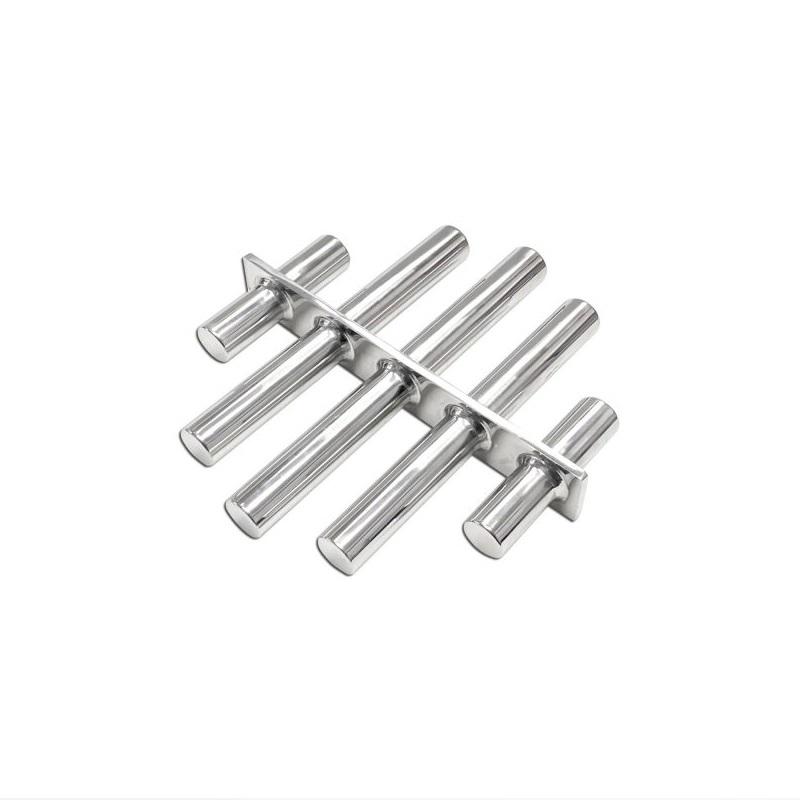

The Single Layer Round Neodymium Magnet Grate is a robust magnetic filtering device designed to remove ferrous contaminants from dry materials or liquids in various processing industries. Made with high-strength neodymium magnets, this grate features a single layer of magnetic rods arranged in a circular frame, ensuring efficient magnetic separation in compact spaces. It is ideal for use in food processing, chemical production, and pharmaceutical industries where product purity is critical. The round design allows for easy integration into pipes and hoppers, providing strong magnetic filtration while maintaining flow efficiency, and ensuring that even the smallest metal particles are effectively captured.

Product Details

Design Drawings

Optional Features

• Surface treatment: mirror polishing, brushed polishing;
• Surface material: SS304, SS316;
• Magnetic strength level of magnetic bar: 8000-14000Gs;
• Working temperature: 80-300℃;
• Size and shape: The size and shape can be made into multi-layer, circular, irregular polygon, semicircular, etc. according to requirements.
• Cleaning method: conventional type, easy-to-clean casing type;
• Optional accessories: handles, guide rods, guide plates.
• Other special requirements.

Application

Magnetic grates are great for removing hoppers and feed troughs. They're really effective at removing iron impurities in free-flowing powders and small particles. They're used in all sorts of machinery, like plastic dryers, crushers, automatic mixers, pelletizers, bag-making machines, and more. They can protect important mechanical parts in the machinery for a long time and improve the quality of the product after magnetic filtration.
