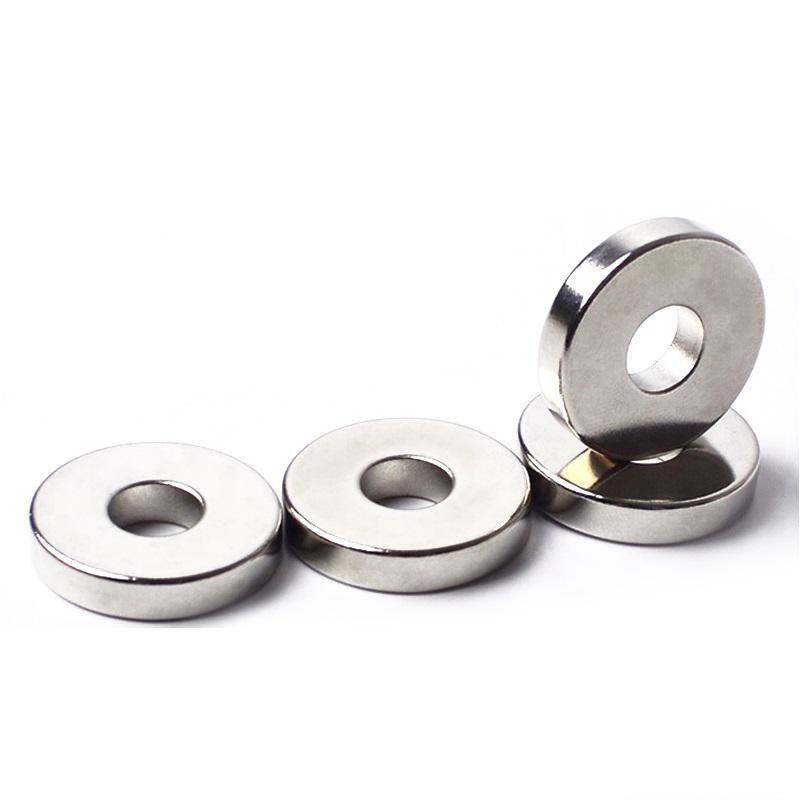

Round Neodymium Magnet Ring

Round Neodymium Magnet Ring

Ring magnets are a specialized type of magnet that share similarities with cylinder magnet or disc magnet but feature a distinctive center hole. This central hole is a key design element that allows for versatile mounting and attachment options.

Unlike countersunk magnets, which have a tapered hole for flush mounting, the central hole in a ring magnet is plain, making it ideal for securing onto a rod, shaft, or other cylindrical objects. Additionally, this plain hole design enables the ring magnet to be easily fixed in place using a non-countersunk bolt, screw, or other fasteners.

 Product Details

What grades & shapes are available for neodymium magnets?

Grades N35, N38, N40, N42, N48, N50, and N52 ( M, H, SH, UH, EH, AH series ) are available for all shapes & sizes of NdFeB magnets.

  Magnetization Direction

Common direction of magnetization showed in picture bellow:

• Disc, cylinder and Ring shape magnet can be magnetized Axially or Diametricall.
• Rectangle magnets can be magnetized through Thickness, Length or Width.
• Arc shape magnets can be magnetized Diametrically, through Width or Thickness.

   Axially Magnetized                 Diametrically Magnetized                  Multi-poles Axially                  Multi-poles Diametrically

 Grade & Coating

Support all magnet plating , like Ni-Cu-Ni, Zn, Epoxy , Gold,  Silver etc.

• Neodymium magnets are made of Neodymium, Iron and Boron.  If left to the elements, the iron in magnet will rust.

To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the magnet to be coated.

• There are a variety of options for coatings, but nickel is the most common and usually preferred.

Our nickel plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes  magnets much more durable than the more common single nickel plated magnets.

• Other options of coating are zinc, tin, copper, epoxy,silver and gold.

 Application

The Round Neodymium Magnet Ring is widely used in various applications due to its strong magnetic force and ring shape. It's commonly utilized in motors, sensors, and magnetic couplings, where precise alignment and rotation are required. Additionally, it's ideal for use in loudspeakers, where it helps create high-quality sound by interacting with the voice coil.

The central hole allows for easy mounting on rods or shafts, making it perfect for industrial machinery, medical devices, and other precision engineering applications.
