D12x5mm Neodymium Magnet Disc

D12x5mm Neodymium Magnet Disc

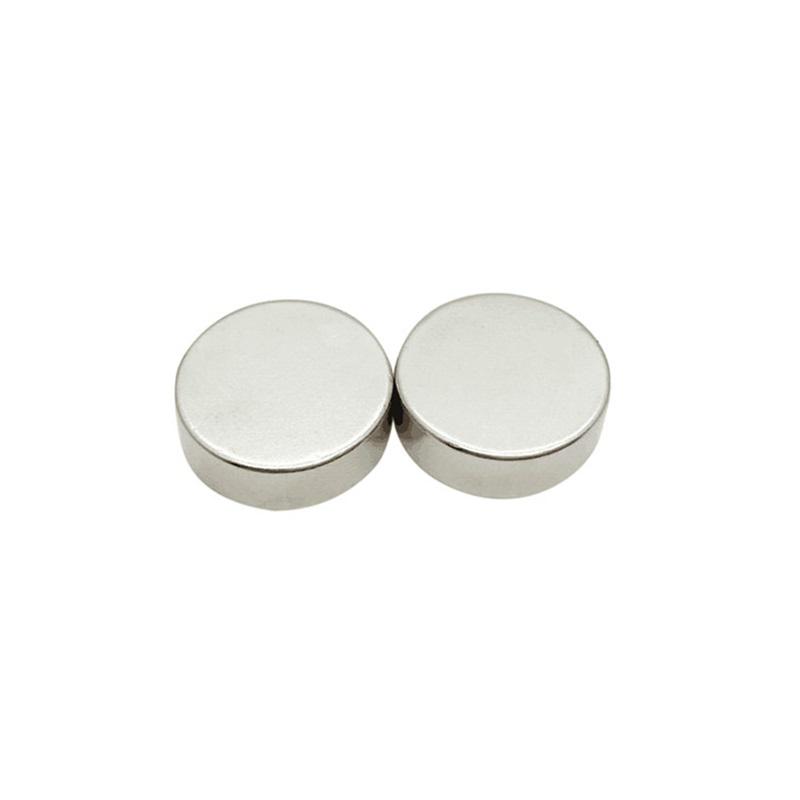

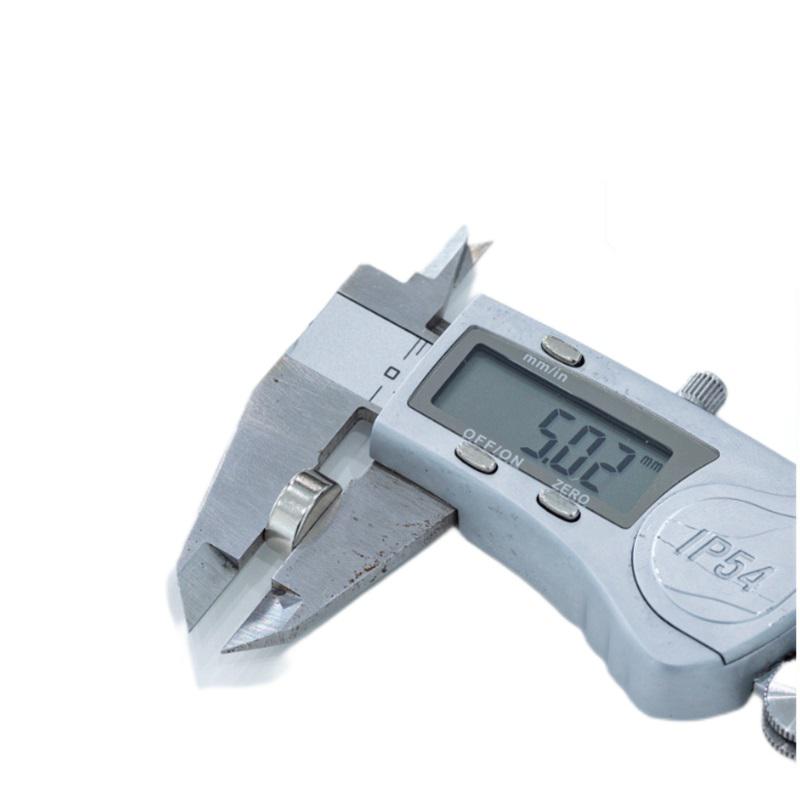

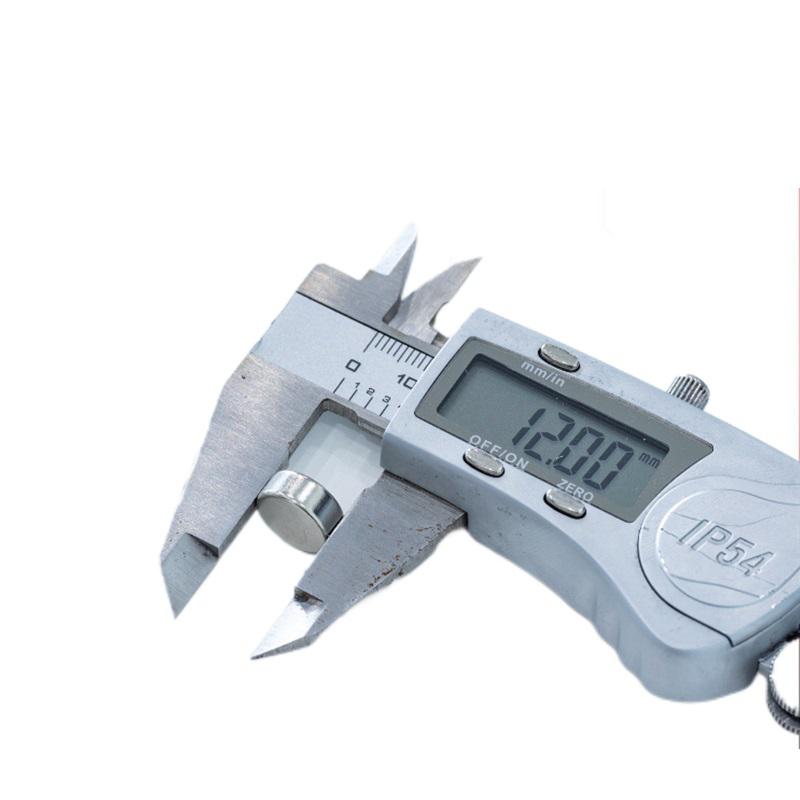

The 12x5mm neodymium magnet disc is a powerful, compact rare earth magnet. With a diameter of 12mm and a thickness of 5mm, these magnets are ideal for limited spaces. They are used in various industries, including electronics, engineering, and manufacturing. They are perfect for projects such as motor assembly, magnetic clasps, DIY projects, and holding mechanisms. They offer high efficiency and reliable performance, making them suitable for both industrial and personal use.

 Product Details

What grades & shapes are available for neodymium magnets?

Grades N35, N38, N40, N42, N48, N50, and N52 ( M, H, SH, UH, EH, AH series ) are available for all shapes & sizes of NdFeB magnets.

  Magnetization Direction

Common direction of magnetization showed in picture bellow:

• Disc, cylinder and Ring shape magnet can be magnetized Axially or Diametricall.
• Rectangle magnets can be magnetized through Thickness, Length or Width.
• Arc shape magnets can be magnetized Diametrically, through Width or Thickness.

Axially Magnetized                    Diametrically Magnetized                    Multi-poles Axially                     Multi-poles Diametrically

 Grade & Coating

Support all magnet plating , like Ni-Cu-Ni, Zn, Epoxy , Gold,  Silver etc.

• Neodymium magnets are made of Neodymium, Iron and Boron.  If left to the elements, the iron in magnet will rust.

To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the magnet to be coated.

• There are a variety of options for coatings, but nickel is the most common and usually preferred.

Our nickel plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes  magnets much more durable than the more common single nickel plated magnets.

• Other options of coating are zinc, tin, copper, epoxy,silver and gold.

 Application

The "Small Round Neodymium Magnet Disc" is a compact and powerful magnet capable of various applications. It can be used in electronics, such as headphones and speakers, for improved sound quality. It is also utilized in magnetic closures, magnetic therapy devices, and as fasteners in DIY projects. With its strong magnetic properties, this disc magnet offers versatility and reliability in numerous fields.
