Countersunk Rare Earth Magnet

Countersunk Rare Earth Magnet

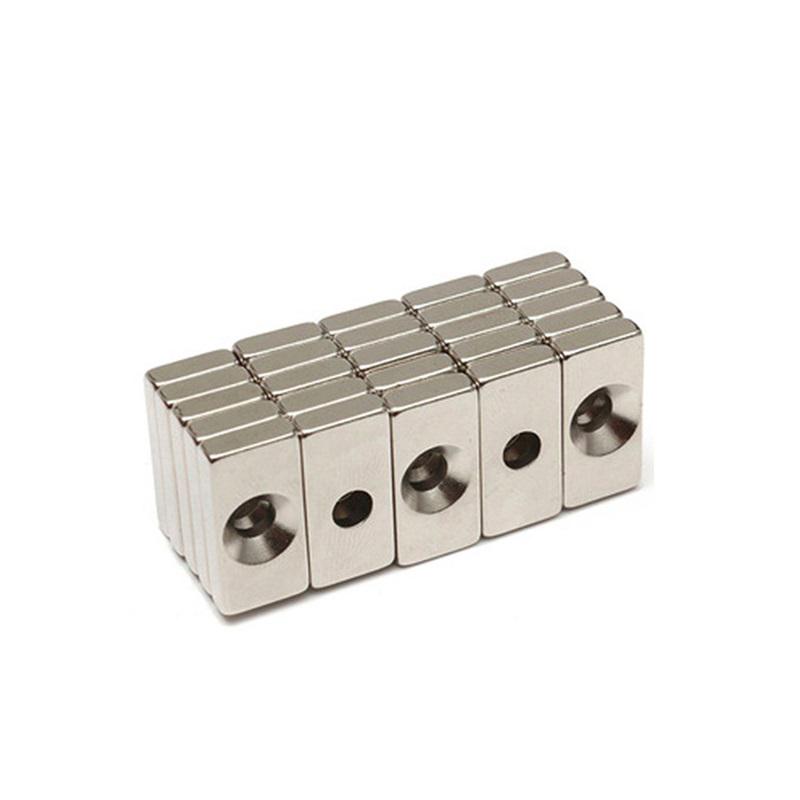

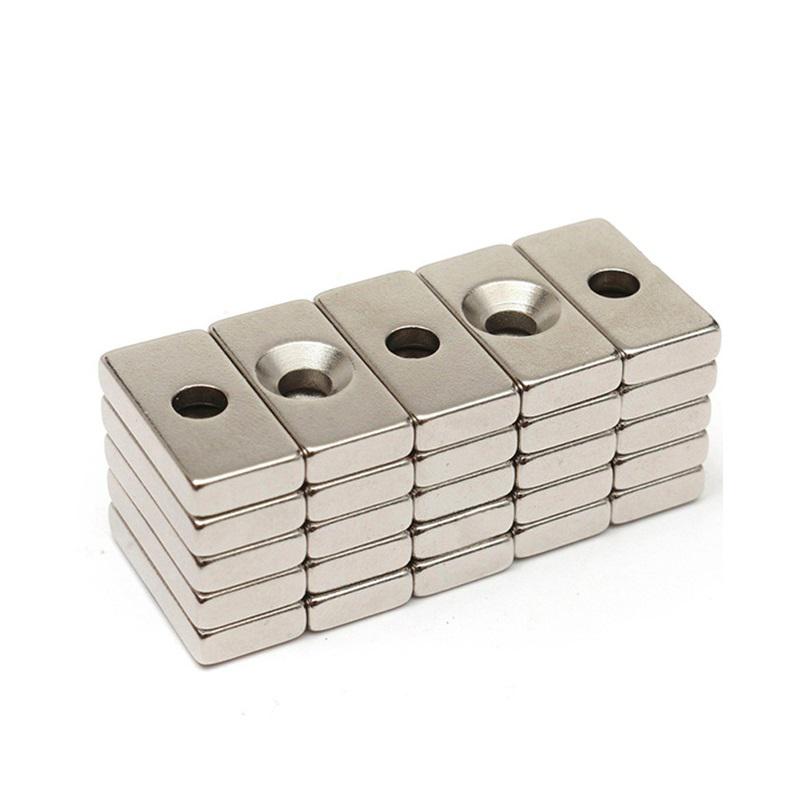

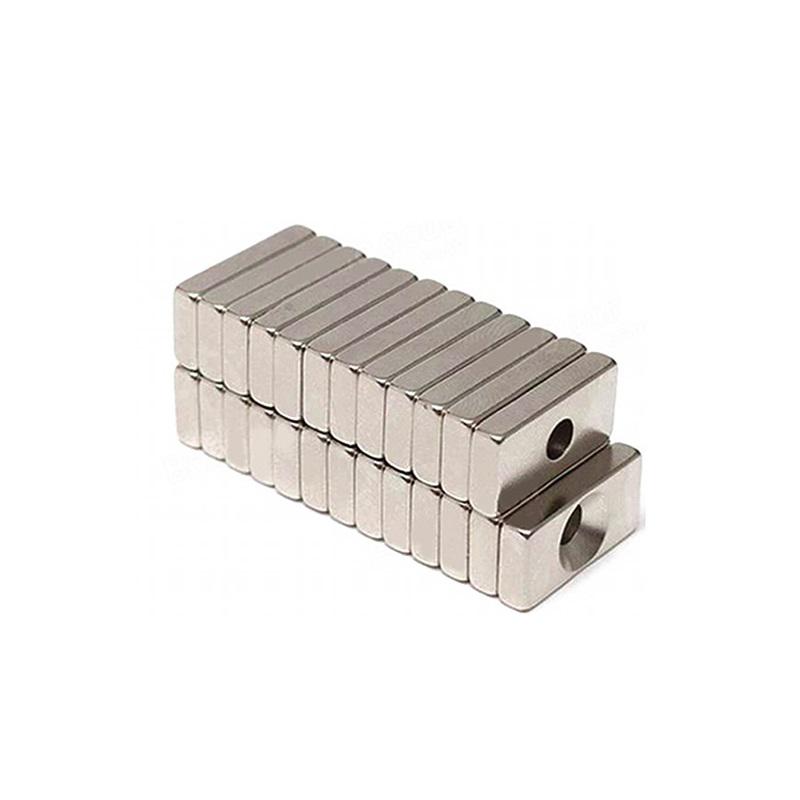

The Countersunk Rare Earth Magnet is a powerful neodymium magnet featuring a countersunk hole for secure attachment using screws. This design ensures that the screw head sits flush with the magnet surface, allowing for a clean and stable installation. Made from rare earth materials, primarily neodymium, it provides an exceptionally strong magnetic force despite its compact size. These magnets are ideal for various industrial applications, including mounting in machinery, fixtures, and magnetic closures. Their strong holding power and durability make them a preferred choice in engineering, construction, and DIY projects where both strength and precision are required.

 Product Details

What grades & shapes are available for neodymium magnets?

Grades N35, N38, N40, N42, N48, N50, and N52 ( M, H, SH, UH, EH, AH series ) are available for all shapes & sizes of NdFeB magnets.

  Magnetization Direction

Common direction of magnetization showed in picture bellow:

• Disc, cylinder and Ring shape magnet can be magnetized Axially or Diametricall.
• Rectangle magnets can be magnetized through Thickness, Length or Width.
• Arc shape magnets can be magnetized Diametrically, through Width or Thickness.

   Thickness Magnetized                 Width Magnetized                 Length Magnetized                  Multi-poles Magnetized

 Grade & Coating

Support all magnet plating , like Ni-Cu-Ni, Zn, Epoxy , Gold,  Silver etc.

• Neodymium magnets are made of Neodymium, Iron and Boron.  If left to the elements, the iron in magnet will rust.

To protect the magnet from corrosion and to strengthen the brittle magnet material, it is usually preferable for the magnet to be coated.

• There are a variety of options for coatings, but nickel is the most common and usually preferred.

Our nickel plated magnets are actually triple plated with layers of nickel, copper, and nickel again. This triple coating makes  magnets much more durable than the more common single nickel plated magnets.

• Other options of coating are zinc, tin, copper, epoxy,silver and gold.

 Application

The Rectangular Neodymium Magnet Block is highly versatile and used in various industrial and technological applications. Its strong magnetic force makes it ideal for use in electric motors, generators, and magnetic separators. It's also commonly employed in sensors, holding systems, and magnetic clamps, where a concentrated magnetic field is needed.

Additionally, its rectangular shape allows for easy integration into assemblies and machinery, making it perfect for precision engineering, electronics, and manufacturing applications where space and power are critical.
